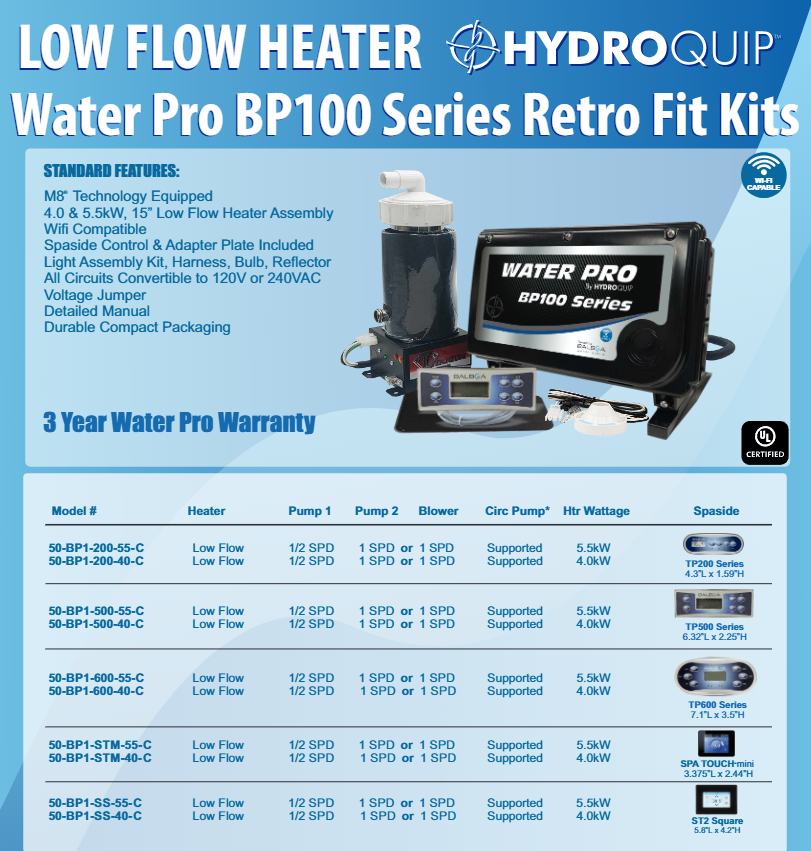

Water Pro by HydroQuip BP100 Series Control System with Low Flow Canister Heater and Topside Control

Water Pro by HydroQuip BP100 Retro-Fit Spa Control System with Low-Flow Heater and Top Side Control

Standard Features:

• With 4.0KW/5.5KW Low Flow Heater
• 12V Light Assembly
• M7 Technology Equipped
• Topside Control
• All Circuits Convertible to 120 or 240VAC
• Amp Receptacles
• Freeze Protection
• Easy To Install & Service
• Installation Kit (see below)
• Detailed Owner’s Manual & Wiring Diagram
• US and Canada UL Recognized
2 Year Warranty

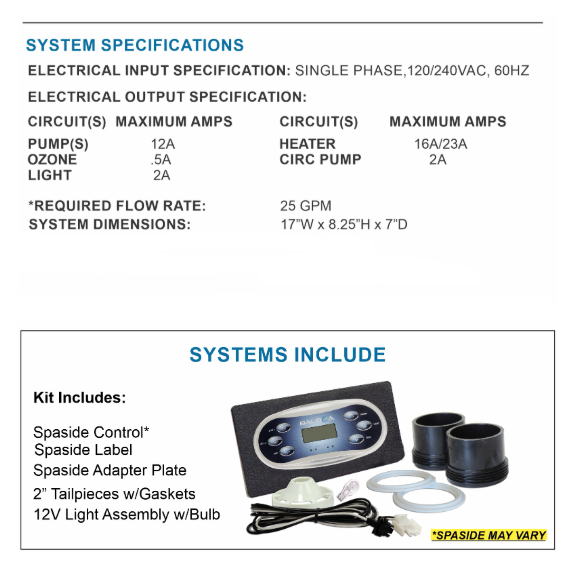

Kit Includes:

• Topside Control
• Topside Overlay
• Topside Adapter Plate
• 12V Light Assembly
• 2” Tailpieces w/Gaskets

The Low Flow heater is for spas that originally were designed for a low flow heater and utilize a
small circulation pump with much smaller plumbing, typically of clear vinyl tubing.. typically
need the flexibility to mount the heater in a different orientation or location.

Please be advised that this style of heater requires a minimum of 10-15 GPM for proper operation and that the
water flow must enter into the lower port and exit the upper port. The heater may be located as
best suits the available space with the equipment mounting area.

It is highly recommended to install a new filter cartridge and verify the output of your current
low flow circulating pump to achieve optimal performance.

Contact your supplier for a recommendation if you're not certain of your pumps
performance or to purchase one of the approved models. Note that the Low Flow system
will exhibit FLO errors in the topside display if the pump performance is too low or if the filter
is dirty.

Pumps NOT acceptable: Laing/Xylem E3, E5 or E14 series, after-market submersible
fountain or pond pumps.

Acceptable pumps: Laing/Xylem E10, Grundfos 43SPA and RUES series, LX WE10
