Complete Spa Control Retrofit System

Give Your Hot Tub
A New Brain.

Replace an aging spa control system with the Water Pro BP7 Series Retrofit Kit. This complete package combines modern Balboa BP7 electronics, a 5.5kW flow-through heater, 12v light kit and the TP700 topside control in one coordinated upgrade.

BP7 Series
TP700 Topside
5.5kW Heater
12v Light Kit
Voltage
115 / 230V
Balboa Power
 M8 Technology
Topside
TP700
WATER PRO BP7 Powered By Balboa

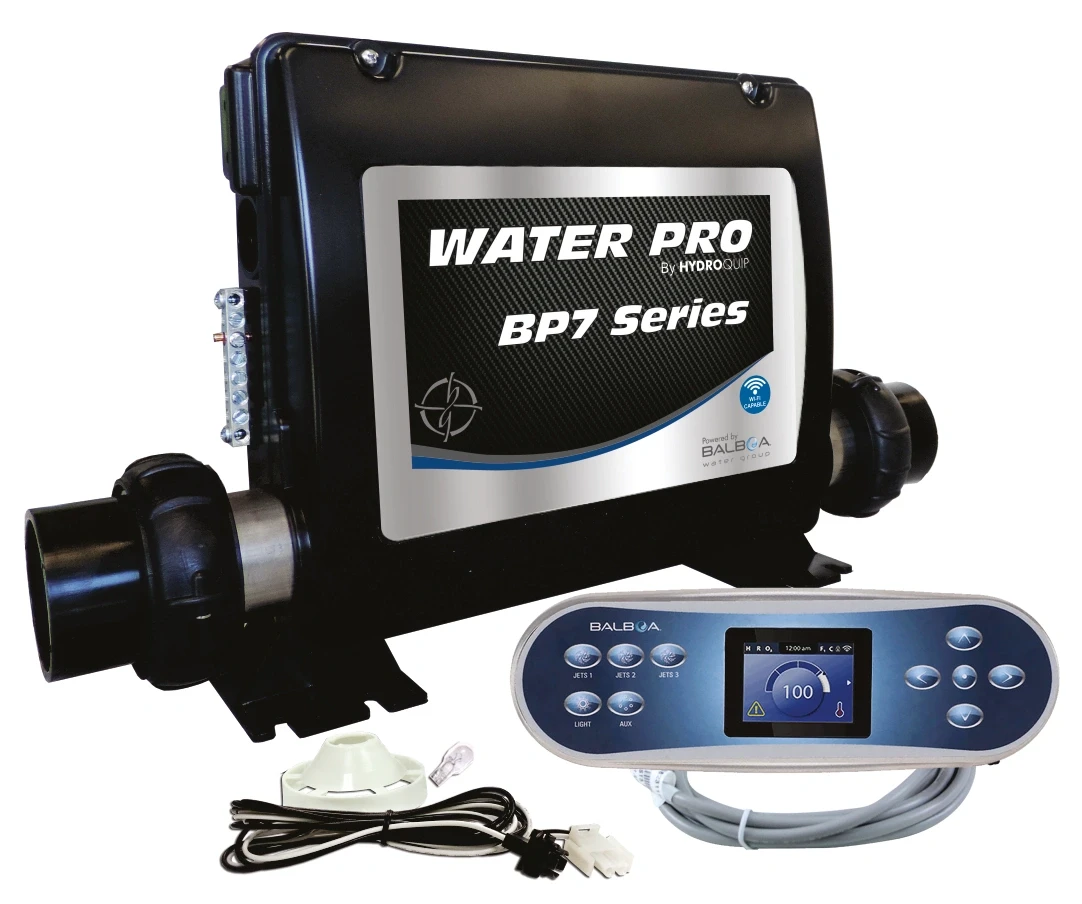

Water Pro BP7 retrofit spa control system with TP700 topside control
Control system, heater, light kit, TP700 topside and installation components
Freeze Protection
Convertible Circuits
Easy To Install & Service
UL Recognized
system Specifications & CAPABILITIES

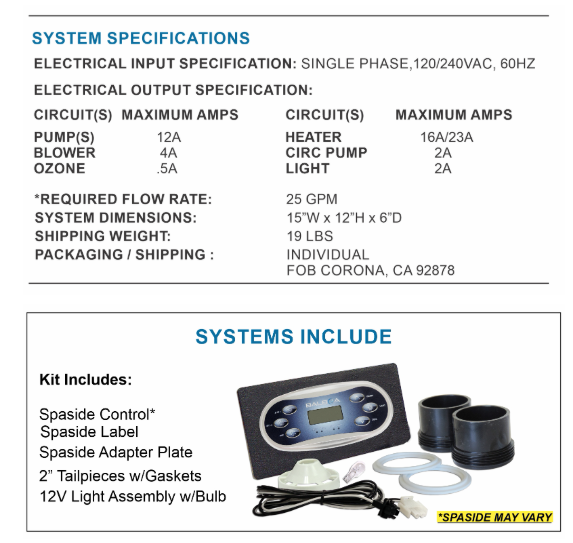

Water Pro BP7 Series System Specifications

Review the supported equipment, electrical requirements, heater configuration and installation specifications before selecting this spa control system.

Water Pro BP7 spa control system
Required Flow Rate
25 GPM
System Dimensions
15"W × 12"H × 6"D
Shipping Weight
19 lbs.
System Overview
Brand
Balboa Water Pro Series by HydroQuip
Model
Water Pro BP7 Series Powered By Balboa
System Voltage
115 / 230V
Heater Style
Flow-Thru
Heater Wattage
5.5kW
Topside Included
TP700
Light Included
12V
Equipment Control Capabilities
Pump 1
SUPPORTED
Pump 2
SUPPORTED
Pump 3
SUPPORTED
Blower
SUPPORTED
Circulation Pump (Set-up Configuration will be necessary)
SUPPORTED
Wi-Fi
CAPABLE
Electrical Input
Phase
Single
Voltage
120 / 240V
Frequency
60Hz
Maximum Electrical Output
Pump(s) 12A
Blower 4A
Ozone 0.5A
Heater 16A / 23A
Circ. Pump 2A
Light 2A
Helpful Buying Tips

Before You Order

Taking a few minutes to verify your existing spa equipment can help ensure you receive the correct replacement control system the first time.

Verify Your Existing System

Confirm your current control system model number and compare it with the replacement recommendations before ordering.

Count Your Equipment

Verify how many pumps, blowers, circulation pumps and accessories your spa actually uses before selecting a control system.

Confirm Electrical Requirements

Check your spa's operating voltage and heater requirements to ensure compatibility with the replacement system.

Need Help Choosing?

Our spa parts specialists can help identify the correct replacement control system for your spa.

Call 800-876-7647
