Premium D.E. Filtration

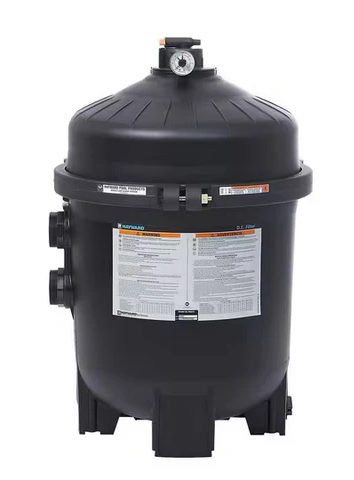

Hayward Pro-Grid D.E. Filter
The Hayward Pro-Grid D.E. Filter delivers exceptional water clarity for inground pools by filtering particles as small as a few microns. Its patented vertical grid design and durable construction provide outstanding performance and easy maintenance season after season.
Filters Down To 2 Microns D.E. filtration delivers incredibly clear, sparkling water.
Vertical Grid Design Patented reusable grids provide superior dirt-holding capacity.
Heavy-Duty Construction Glass-reinforced copolymer tank stands up to harsh pool environments.
Easy Service Access Single-piece flange clamp allows fast access to internal components.
Why Choose D.E. Filtration? D.E. filters provide some of the finest filtration available for residential pools, capturing extremely small particles and producing exceptional water clarity.
A Closer Look
The Hayward Pro-Grid D.E. Filter combines premium construction with innovative engineering to deliver exceptional water clarity, long filter cycles, and simplified maintenance. Every component is designed to maximize performance and provide years of dependable service.
Vertical Grid Elements
Patented reusable Vertical grids provide exceptional dirt-holding capacity and efficient filtration.
Filters Down To 2 Microns
D.E. filtration captures extremely fine particles for crystal-clear, sparkling pool water.
Single-Piece Flange Clamp
Provides quick access to the internal grid assembly for easier maintenance and cleaning.
High-Capacity Grid Design
Large filtration area means longer periods between cleanings and outstanding dirt retention.
Durable Tank Construction
Glass-reinforced copolymer tank construction stands up to harsh pool environments and years of use.
Efficient Water Flow
Precision-engineered internal plumbing provides excellent hydraulic efficiency and filtration performance.
Pro-Grid D.E. Filter Specifications
Compare the available Hayward Pro-Grid D.E. filter models below to choose the right size for your inground pool.
Pro-Grid DE3620
36 Sq. Ft.
Effective Filtration Area: 36 ft.²
Filter Type: D.E.
Pressure Gauge: Yes
Product Dimensions:
34.5" x 24" x 24"
Turnover - 8 Hours: 34,560 Gal.
Number of Filter Elements: 10
Valve Included: Not Included
D.E. Capacity: 4.5 lbs.
Pro-Grid DE4820
48 Sq. Ft.
Effective Filtration Area: 48 ft.²
Filter Type: D.E.
Pressure Gauge: Yes
Product Dimensions:
40.5" x 24" x 24"
Turnover - 8 Hours: 46,080 Gal.
Number of Filter Elements: 10
Valve Included: Not Included
D.E. Capacity: 6 lbs.

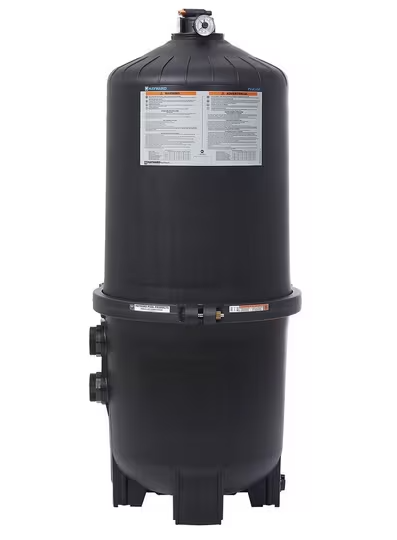

Pro-Grid DE6020
60 Sq. Ft.
Effective Filtration Area: 60 ft.²
Filter Type: D.E.
Pressure Gauge: No
Product Dimensions:
46.5" x 24" x 24"
Turnover - 8 Hours: 57,600 Gal.
Number of Filter Elements: 10
Valve Included: Not Included
D.E. Capacity: 7.5 lbs.
Important Add-On

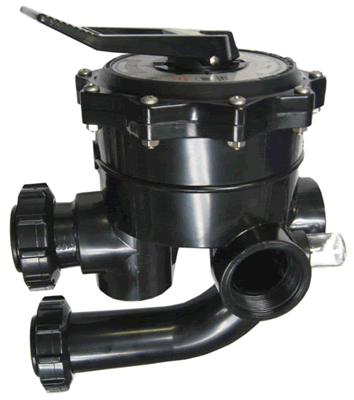

Don't Forget The Multiport Valve
The Hayward Pro-Grid D.E. Filter does not include a multiport valve. A multiport valve is required to operate your filter properly and allows you to easily switch between filtration, backwash, rinse, waste, and closed settings.
Installation Tip Be sure to select the correct valve size and plumbing configuration when ordering your filter system to ensure a smooth installation.
