Balboa BP7 Spa Control Retrofit Kit With 4.0 / 5.5kW Heater and Topside Control Pad

Balboa

MFG#:
G6405, G6406, G6505, G6506
From: $579.99
Balboa BP7 Spa Control System With Heater and TP500 Keypad
View Details



Genuine Balboa Product
Genuine Balboa® BP7
Spa Control Retrofit Kit
Replace an outdated spa control system with a genuine Balboa BP7 retrofit kit featuring M7® sensor technology, a new flow-through heater and your choice of a TP500 or TP600 topside control.
Genuine Balboa BP7
M7® Sensor Technology
4.0 or 5.5kW Heater
TP500 or TP600 Topside
115 / 230 Volt
Wi-Fi Ready
Multiple Pump Support
2-Year Warranty
Balboa Water Group

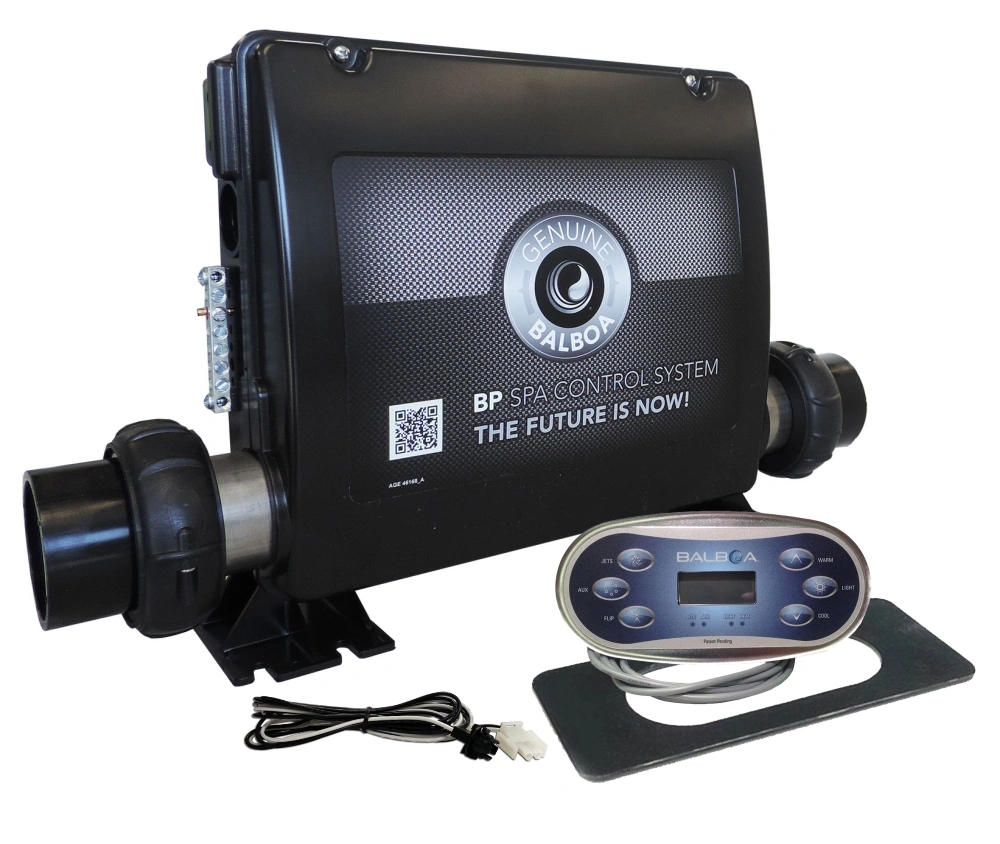

Balboa BP7 spa control retrofit kit with heater and topside control
Complete BP7 retrofit system with fixed heater and your choice of TP500 or TP600 topside control.
✓ Genuine Balboa
✓ M7 Technology
✓ Convertible Circuits
✓ Self Diagnostics
Balboa BP7 System Details
Flexible Control for Modern Spa Equipment
The programmable BP7 platform can be configured to operate pumps, a circulation pump, blower, ozone, lighting and other common spa equipment.
System Overview

The Balboa BP7 is a programmable retrofit control system designed as a replacement option for many older Balboa VS, BP, BP5 and EL control systems.

Input Voltage 115V or 230V
Heater Output 4.0 or 5.5kW
Control Box 11.50" H × 12.64" W × 4.80" D
Heater Size 15" flange to flange
Equipment Control Capabilities
✓ Pump 1: 115V or 230V, one-speed or two-speed
✓ Pump 2: 115V or 230V, one-speed or two-speed
✓ Pump 3 or Blower: 115V or 230V, one-speed
✓ Circulation Pump: 115V or 230V
✓ Ozone: Controlled by the programmed filter cycle
✓ Spa Light: Supports a 12V LED color-rotation light
Configuration Note: The BP7 is programmable and can be configured in several different ways. The factory default is Setup 21 for one dual-speed pump.
Balboa BP7 System Overview
Review the system layout, available equipment connections and configuration information before selecting your replacement control.

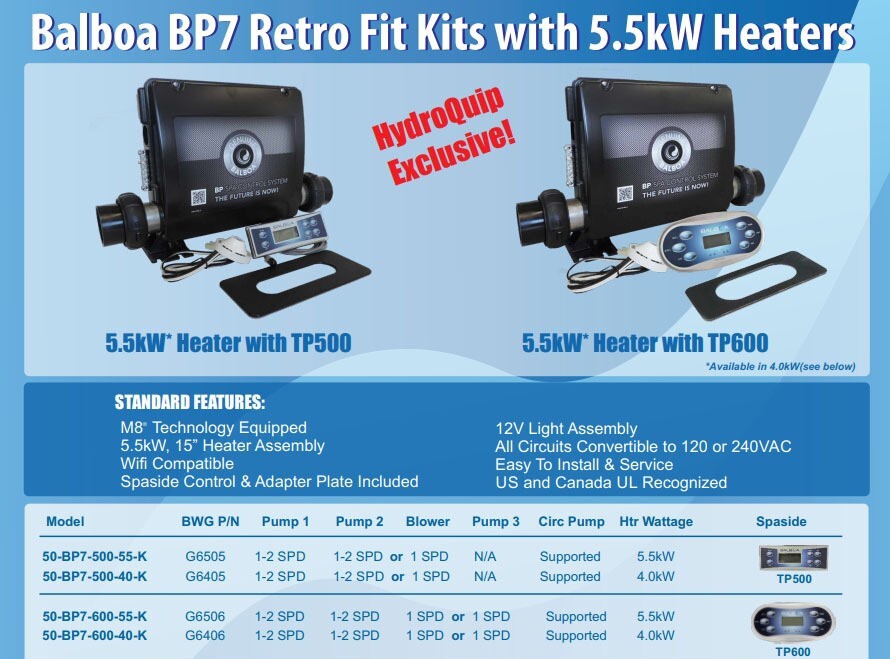

Balboa BP7 spa control system brochure and equipment configuration chart
Electrical Requirements
Incoming power: 115V or 230V single phase.
Neutral: Required for convertible operation.
Output circuits: Configurable for 115V or 230V.
M7 Heater Technology
Temperature and high-limit sensors are mounted directly in the heater. The M7 design eliminates the traditional pressure switch and provides built-in diagnostic protection.
Before Installation
Pump and blower cords are not included. All circuits ship configured for 230V and must be converted according to the installation instructions when 115V equipment is used.
Important Circulation Pump Requirement A 24-hour circulation pump must provide at least 23 GPM of water flow. Low-flow circulation pumps that cannot meet this requirement should not be used with the standard BP7 flow-through heater.
