Complete Spa Control Retrofit System

Give Your Hot Tub
A New Brain.

Replace an aging spa control system with the HydroQuip Water Pro Powered by Balboa BP7 Series Retrofit Kit. This complete package combines the latest Balboa M8 Technology, a 5.5kW Fixed Flow-Thru Heater, 12V light kit, Convertible 115/230V Circuits and the TP700 topside control into one coordinated upgrade. Additional models are available with either Fixed or Sliding Flow-Thru Heaters in both 4.0kW and 5.5kW configurations, making it easy to match your spa's original equipment and installation requirements.

BP7 Series
TP700 Topside
4.0/5.5kW
12V Light
115/230V
Fixed/Slide
Wi-Fi Ready
2 Yr Warranty
HYDROQUIP WATER PRO BP7 Powered By Balboa
Water Pro BP7 retrofit spa control system with TP700 topside control
Control system, heater, light kit, TP700 topside and installation components
Freeze Protection

Convertible Circuits

Easy To Install & Service

UL Recognized
system Specifications & CAPABILITIES

Water Pro BP7 Series System Specifications

Review the supported equipment, electrical requirements, heater configuration and installation specifications before selecting this spa control system.


Water Pro BP7 spa control system
Required Flow Rate
25 GPM
System Dimensions
15"W × 12"H × 6"D
Shipping Weight
19 lbs.
Please Note
This system is shipped using Configuration #21. Please refer to the specification image above or the installation manual for the proper configuration of your system.
System Overview
Brand
Balboa Water Pro Series by HydroQuip
Model
Water Pro BP7 Series Powered By Balboa
System Voltage
115 / 230V
Heater Style
Flow-Thru
Heater Wattage
1.5/5.5kW
Topside Included
TP700
Light Included
12V
Equipment Control Capabilities
Pump 1
SUPPORTED
Pump 2
SUPPORTED
Pump 3
SUPPORTED
Blower
SUPPORTED
Circulation Pump (Set-up Configuration will be necessary)
SUPPORTED
System Configuration & Circuit Assignments
Circuit Configuration
Pump 1115V or 230V (1 or 2 Speed)
Pump 2115V or 230V (1 or 2 Speed)
Pump 3 / Blower115V or 230V (1 Speed)
Circ Pump115V or 230V (23 GPM Min.)
Ozone115V or 230V Filter Cycle
AV Circuit115V or 230V Stereo / Video
Light12V LED
System Components
KeypadTP700 (10" × 3.5")
Titanium Heater5.5kW / 1.0kW Fixed
Temperature SensorHeater Mount Auto Reset
Overheat SensorHeater Mount Auto Reset
Wi-Fi ReadyRequires Module 59303
Important Installation Notes
  • This system ships configured as Set-up #21.
  • Programming instructions are included for changing system configurations.
  • Use the included Y-Splitter when configuring Pump #4.
  • All circuits ship configured for 230V. Refer to the installation manual for converting circuits to 115V.
  • A 24-hour circulation pump must provide a minimum flow rate of 23 GPM.
  • Laing, Grundfos and Waterway Tiny Might circulation pumps do not meet this requirement.
  • The Aqua Flo Circ-Master is the recommended circulation pump.
Electrical Input
Phase
Single
Voltage
120 / 240V
Frequency
60Hz
Maximum Electrical Output
Pump(s) 12A
Blower 4A
Ozone 0.5A
Heater 16A / 23A
Circ. Pump 2A
Light 2A

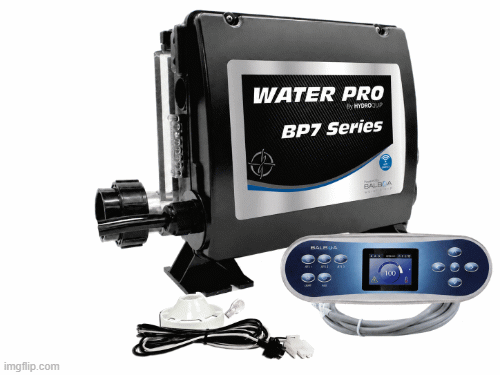

Water Pro BP7 Sliding Flow-Thru Heater
Alternate Configuration available
Sliding Flow-Thru Heater
Available with the same BP7 electronics, TP700 topside control and equipment capabilities.
4.0kW
5.5kW
Alternate Configuration Available

This System Is Also Available With a Sliding Flow-Thru Heater...

The Water Pro BP7 control system is available with either a Fixed Flow-Thru Heater or a Sliding Flow-Thru Heater. Both heater styles are available in 4.0kW and 5.5kW versions while maintaining the same BP7 electronics, TP700 topside control, 12V light kit and equipment capabilities.

Fixed or Sliding Heater
4.0kW
Fixed or Sliding Heater
5.5kW
Please Note: All Water Pro BP7 systems include the same Balboa BP7 electronics, TP700 topside control, 12V light kit and equipment capabilities. The only differences are the heater style and heater wattage.
Need Help Choosing?
Not Sure Which Control System You Need?
Our spa parts specialists can help you choose the correct replacement system for your hot tub.
