106,000 BTU MODEL

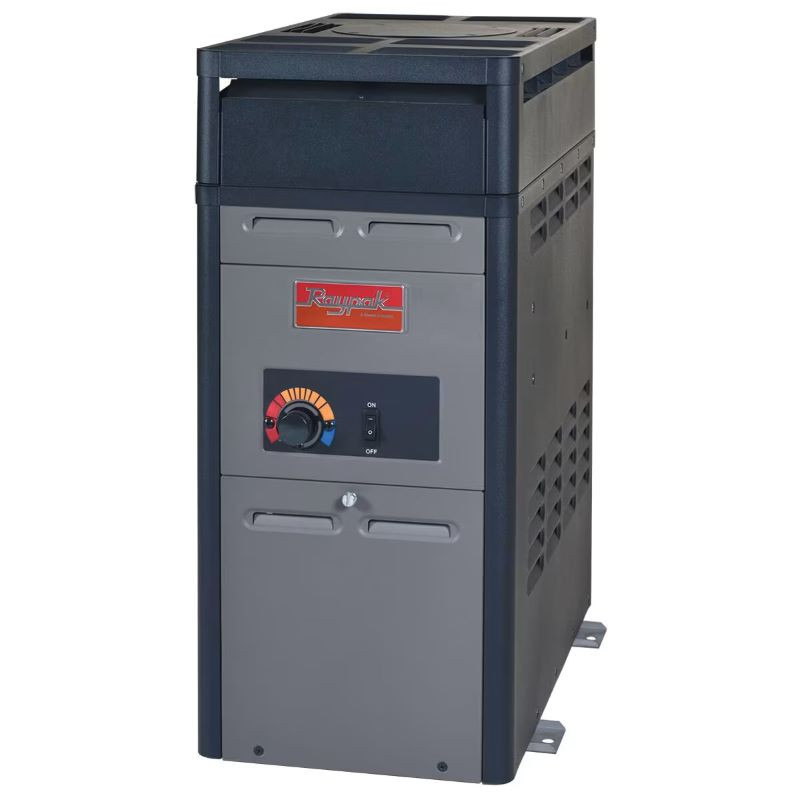

Raypak 106A Above Ground Pool/Spa Heater
Designed specifically for Above Ground Pools and Spas, the Raypak 106A delivers reliable gas heating in a compact, easy-to-install package. Its lightweight design and straightforward controls make it a popular choice for above ground spas, therapy pools, and small plunge pools.
Compact Footprint
Fits where larger heaters cannot.
Simple Controls
Easy operation and dependable performance.
Natural Gas or Propane
Available in both fuel configurations.
Ideal For Spas
Quickly raises water temperature for comfortable soaking.

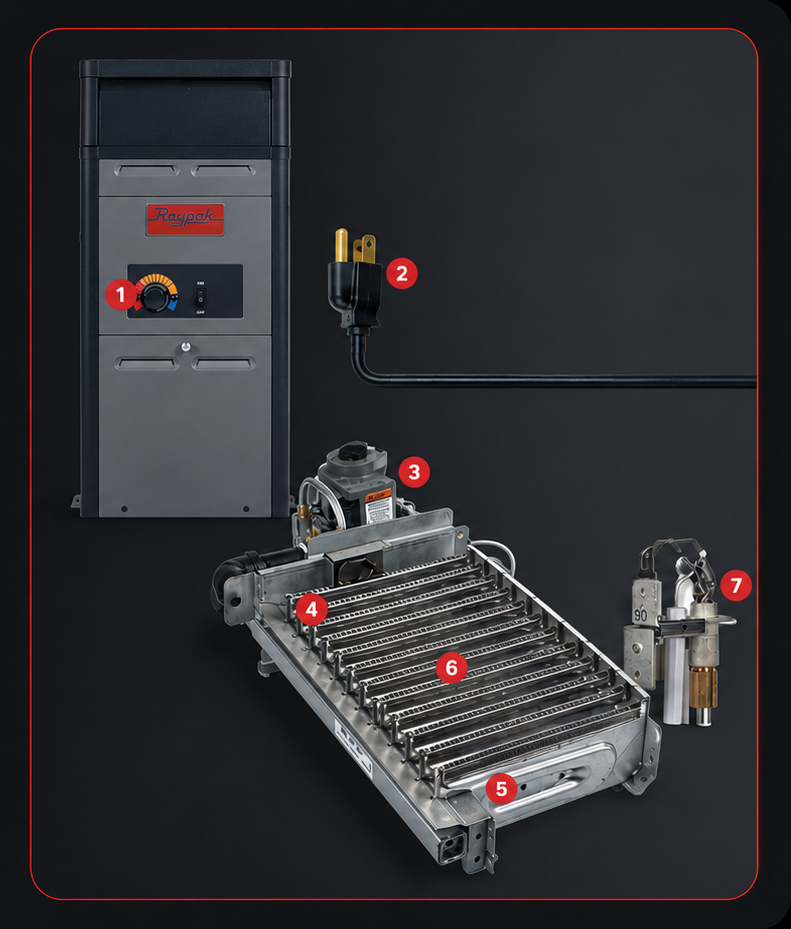

A Closer Look at the 106A
Inside the Raypak 106A & 156A you'll find simple, proven components designed for dependable performance and easy operation. Every major component is engineered for reliability, serviceability, and long-term durability.
1
Analog Control (Digital on the 156A)
Easy-to-use thermostat dial provides simple temperature control without complicated electronics.
2
Power Cord
Factory wired with a 120V power cord for straightforward installation.
3
Gas Valve
Controls fuel delivery for safe, efficient operation in both natural gas and propane models.
4
Pilot Assembly
Proven spark-to-pilot ignition technology trusted throughout the industry for decades.
5
Burners
Stainless steel burner design delivers consistent heating while resisting corrosion.
6
Burner Tray
Removable design simplifies service and maintenance when access is required.
7
Pilot Ignition
Reliable spark-to-pilot ignition system ensures dependable startups season after season.
156,000 BTU MODEL

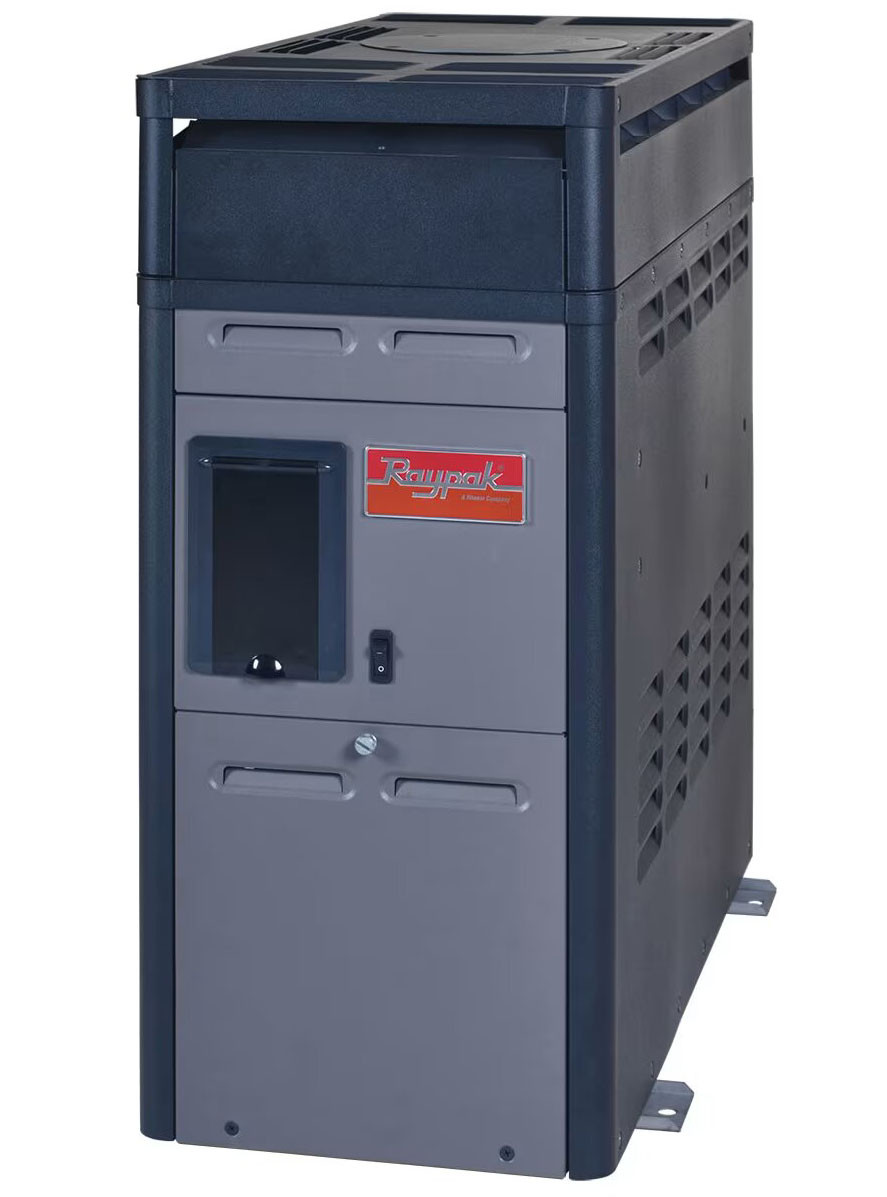

Raypak 156A Above Ground Pool/Spa Heater
Need a little more heating power? The Raypak 156A offers increased BTU output for above ground pools, small inground pools, and larger spas. It delivers dependable performance, proven durability, and faster heat-up times when compared to smaller heaters.
Higher BTU Output
156,000 BTUs for faster heating performance.
Pool & Spa Ready
Suitable for many above ground pools and spas.
Weather Resistant Cabinet
Built to handle outdoor installations.
Natural Gas or Propane
Choose the fuel type that fits your setup.

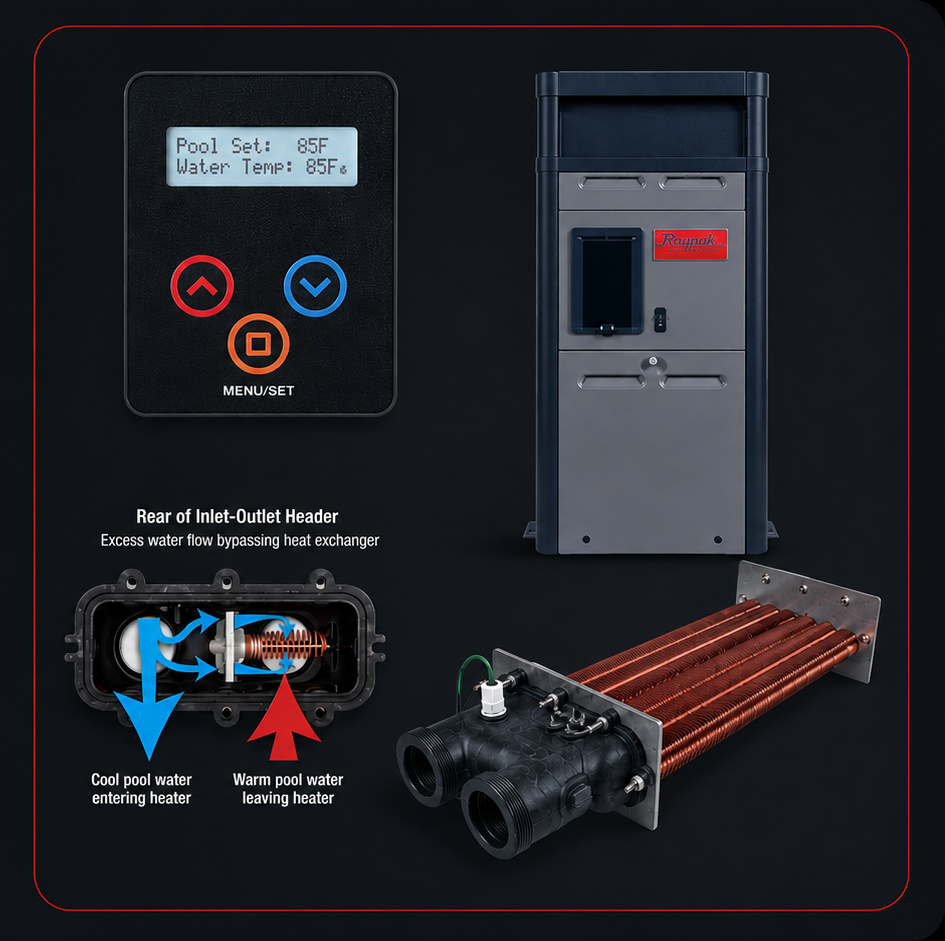

A Closer Look at the 156A
The Raypak 156A combines digital control, reliable diagnostics, and proven heat exchanger technology in one compact heater built for above ground pools and spas.
1
Digital Control
Microprocessor-controlled thermostat allows precise temperature settings with an easy-to-read digital display.
2
Self-Diagnostic
On-board diagnostic controls monitor heater operation and display easy-to-understand messages when service may be needed.
3
Remote-Compatible
Compatible with most major pool control and remote systems for convenient heater operation.
4
Copper Fin Tube Heat Exchanger
High-quality copper fin tube construction delivers efficient heat transfer and dependable durability.
5
Automatic Bypass
Built-in bypass helps balance water flow through the heat exchanger to reduce condensation, scaling, and erosion.
6
Rust-Free Waterways
Rust-free polymer header and stainless steel tube sheets help resist corrosion for long-term performance.
7
Built to Last
Quality construction and proven materials help the Raypak 156A deliver dependable performance season after season.
